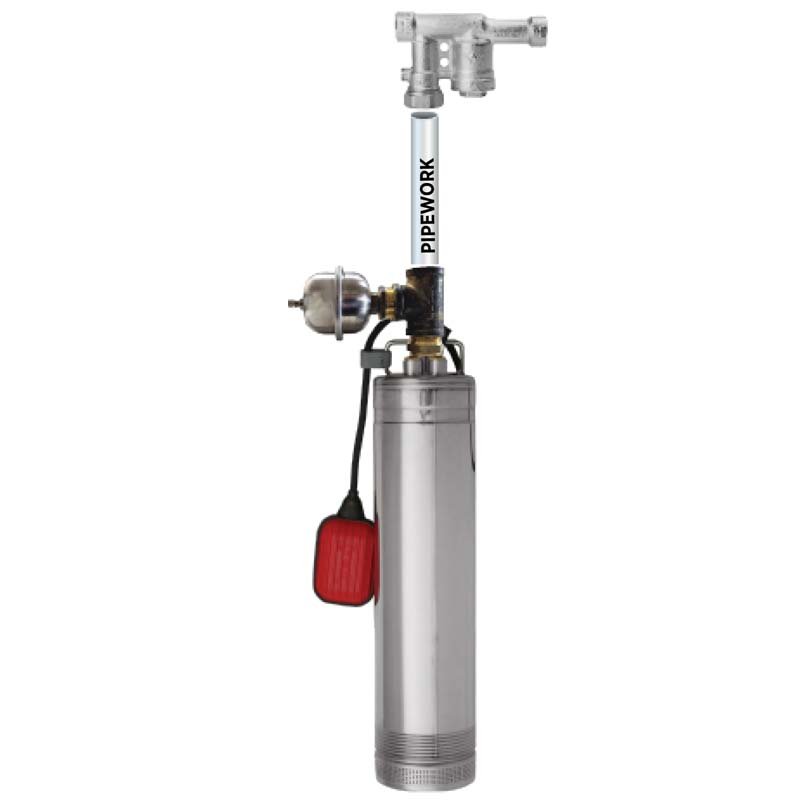

REEFE RM5000-4 RPS34E rains to mins system with submersible pump and RM1600-2 Valve (ccrrm5000-4rm1600 )
The RM5000-4 features a Submersible Multistage Pressure Pump with integral controller, specifically designed for fast and easy installation. The pumping valve are made in Europe, guaranteeing exceptional quality and performance in Rainwater supply applications. This system is suitable for underground tanks and best suited for supply to toilets, laundries and small house or cabin with one bathroom.
Bathrooms & Laundry
Whole house – refer to the data table below for sizing
Small commercial / industrial*
Garden irrigation*
Toilet blocks (up to 6 fixtures)*
Construction / mine site offices*
Stainless Steel AISI 304 Pump body, motor shaft, handle, cover, screen
Polymer Impellers, diffusers
Alumina.Graphite, lubricated mechanical seal
Valveset made from DZR Brass
| CODE | 22597 | ||
| DESCRIPTION | RM5000-4 with RPS34E Pump & RM1600-2 Valve | ||
| AMPS | 3.8 | P1 | P2 | 0.85 | 0.37 |
| MAXIMUM FLOW | 80 L/min | MAXIMUM HEAD | 32m |
| NO. OF IMPELLERS | 3 | CABLE LENGTH | 10m |
| PUMP SIZE DØ x H (mm) | Ø127 x 502 | ||
| HOUSE SIZE & BATHROOMS** | Small | 1 Bathroom | ||
